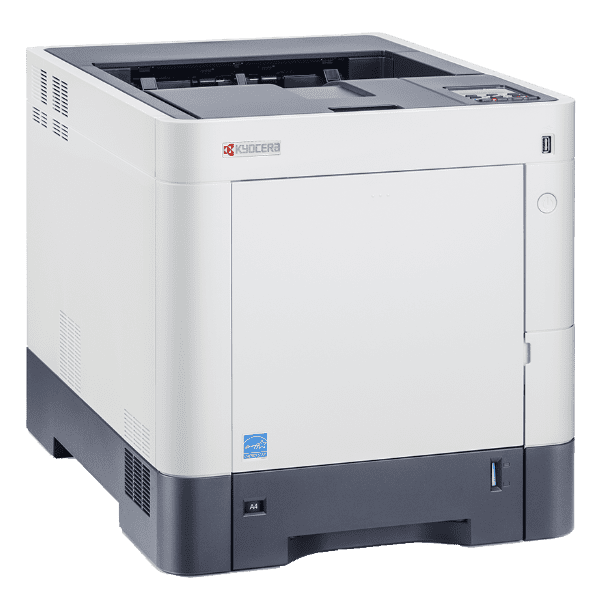

ECOSYS P6130cdn

ECOSYS P6130cdn

The document imaging capabilities of the ECOSYS P6130cdn bring exceptional functionality to workgroups of all sizes in a powerful, yet small footprint. Its 32 ppm output in black or color, and large paper capacity helps users keep jobs moving smoothly.

And with optional wireless printing,standard USB host interface and Apple AirPrint™ capabilities, your workforce is able to stay productive without being tied to the device.

As importantly, trusted ECOSYS long-life consumables and an impressive drum yield deliver an economical and ecological solution without compromise.

  • 32 ppm B&W, 32 ppm Color
  • Print
  • 600 x 600 dpi
  • Standard: 600 Sheets
    Maximum: 2,100 Sheets


TechnologyKyocera ECOSYS Laser Printer
Control Panel Type2 Line LCD
Product CategoryA4 Color Printer
Functions (Print / Scan / Copy / Fax)Print
Engine Speed32 ppm B&W, 32 ppm Color
Warm-up Time26 Seconds
First Page Out Time (print/copy)Print: 7 Seconds B&W, 8 Seconds Color
Resolution600 x 600 dpi
CPUPower PC 465S / 1GHz
Memory (std/max)Standard: 512 MB RAM
Maximum: 2 GB RAM
Hard Disk Drive (Standard / Optional)Optional: HD-6 (32 GB SSD) or HD-7 (128 GB SSD)
Electrical Requirements120V: 60Hz, 9A; 220-240V: 50/60Hz, 5.0A
Dimensions (W x D x H)39.1 cm x 53.3 cm x 41.1 cm
Mainframe Weight61.7 lbs
Maximum Monthly Duty Cycle100,000 Pages Per Month
Power ConsumptionTypical Electricity Consumption (TEC): 120V: 1.8 kWh/week; 220-240V 1.8 kWkh/week
Maximum (Including Options): 120V: 1,082W; 220V-240V: 1,146W
Printing: 120V: 515W; 220-240V: 479W
Ready Mode: 120V: 57W; 220-240V: 56W
Sleep Mode: 120V: 2W; 220-240V: 2W
Power Off: 120V: 0.3W; 220-240V: 0.3W
Input Capacity (std/max)Standard: 600 Sheets
Maximum: 2,100 Sheets
Output Capacity (std / max)Standard: 250 Sheets
Maximum: 250 Sheets
Paper Sources (std / max)Standard: 1 Drawer + 1 MPT
Maximum: 4 Drawers + 1 MPT
Maximum Paper Size8.5″ x 14″
Supported Paper WeightsDrawers: 16 lb Bond – 90 lb Index
MPT: 16 lb Bond – 120 lb Index
Input MaterialsPlain Paper, Bond Paper, Recycled Paper, Envelopes, Cardstock, Transparencies, Labels
